Company 企業情報

Please contact us for inquiries by E-mail. info@kamata.co.jp
KAMATA　Industry Co.,Ltd.　　SALES PROMOTION DEPT

Summary of Company

Main Customer

Steel industry, Metal Industries	JFE Steel Corporation Sumitomo Metal Mining Co., Ltd. Nippon Light Metal Company, Ltd.
Mining industry, Cement industry	Mitsubishi Materials Corporation Taiheiyo Cement Corporation
Paper manufacture、Printing industry	Oji Paper Co., Ltd. Nippon Paper Group, Inc. Dai Nippon Printing Co., Ltd. Yomiuri Shimbun Tokyo Paper Mfg. Co., Ltd.
Chemical industry , Food industry	FUJIFILM Corporation Asahi Kasei Corp. Nissin Food Products Co., Ltd. Meiji Co., Ltd. Lotte Co., Ltd.
Government and municipal offices public agencies	National Printing Bureau National Maritime Research Institute
Machine industry, Electrical industry	Ricoh Company, Ltd. Nikon corporation

Range of products

◎　KAMATA CLEAN BOOTH

◎　KAMATA CLEAN ROOM

◎　Belt and Material goods

Belt, Materials-handling system, power-saving equipment

◎　Hose and joint

◎　DiChrone Coating　（Surface treatment）

This is nonstandard chrome plating that performs treatment with an original catalyst bath. Since mixed catalyst is used and chromium carbide alloy with high intermolecular bonding is coated, the surface is relatively hard (approximately HV1000) and various features such as wear resistance are obtained.

◎　 Emergency Shower Booth

◎　High-performance filter

◎　Tactile Sensor (Pressure distribution measuring system)

◎　Insulating material

◎　Waste water treatment

◎　Mechanical equipment

◎　Rubber and resin molding

Please contact us for inquiries by E-mail. info@kamata.co.jp
KAMATA　Industry Co.,Ltd.　　SALES PROMOTION DEPT

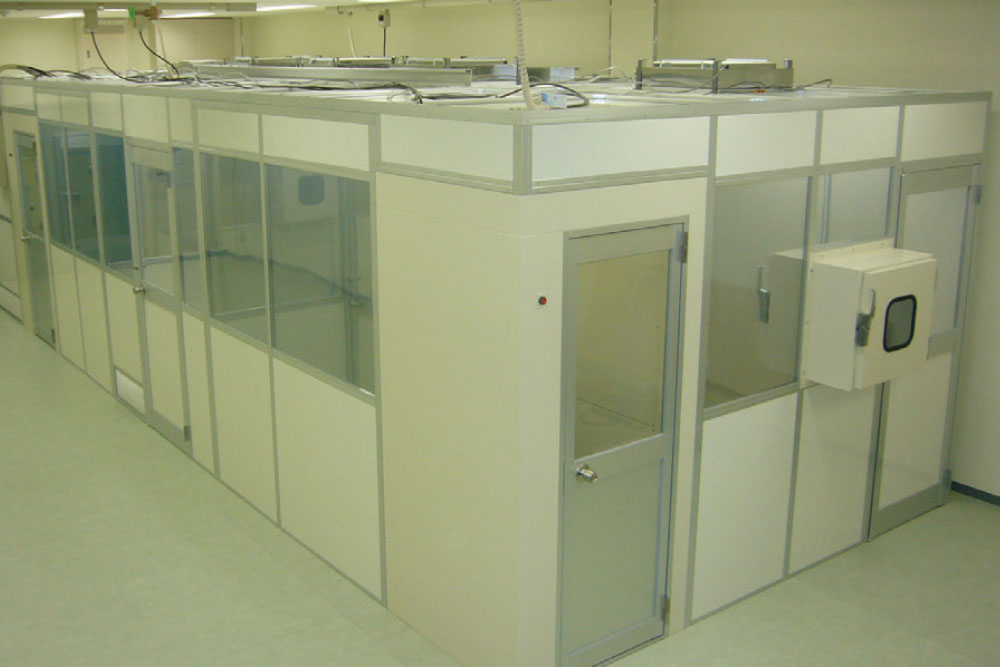

KAMATA Clean Booth

Completely made-to-order contamination control booths using original aluminum frames. Provides cleanliness factors ranging from ISO class 5 to class 8.
We have adopted a specialized lightweight aluminum frame design in pursuit of sealing performance and safety.
By using transparent electrostatic plastic paneling around the perimeter of the booth, we have created a superb clean environment without the use of vinyl curtains.
Our simple system uses a fan unit with a HEPA air filter installed in the ceiling surface to convey clean air into the booth and a positive-pressure ventilation system to send air through the exhaust filter.

　　- Completely made to order
　　- Excellent airtightness
　　- Uses a low-noise-level, low-power-consumption fan filter unit
　　- Recessed lighting equipment
　　- Excellent filter maintainability
　　- Pre-filter and positive pressure damper

Example of use

　W15500＊D3500＊H2400　JIS　Class　6
　W5000＊D5000＊H2800　JIS　Class　6
　W5500＊D5000＊H2500　JIS　Class　7
　W2000＊D2000＊H2200　JIS　Class　6
　W3800＊D3500＊H2300　JIS　Class　6

Feature of a KAMATA CLEAN BOOTH

Completely made to order

Low cost, quick delivery and enhanced cleanliness. We custom-design your unit in consideration of installation location, usage conditions and size. Aside from the box-shaped design, various dimensions and shapes are possible.

Excellent airtightness

The specialized design of our original aluminum frame maintains excellent airtightness. We utilize 3 mm transparent antistatic PVC panels as standard, but acrylic or polycarbonate material can be adopted instead to accommodate usage conditions (panel thickness up to 4 mm).
Each surface is attached separately, so even if a panel breaks or becomes dirty it can be easily replaced.
Excellent airtightness results in a low air exchange rate in order to maintain the level of cleanliness. This means that running costs can be kept to a low level, especially when compared with products that use vinyl curtains.

Facilitates Use of Dual Inside-Outside Mounting

Because the grooves used for affixing the panel materials are located on both the inner and outer sides of the frame, customers can choose between outside mounting, inside mounting and dual inside-outside mounting. Use of dual inside-outside mounting in particular fills in both the inner and outer grooves, which is effective in preventing turbulent airflow and makes possible a higher degree of cleanliness. In addition, this creates a heat-insulating layer, which is highly effective in reducing noise and maintaining temperature.

Beautiful Design

Highly appealing design through use of anodized aluminum frames with clear coating. The corner R-type frame in particular achieves an elegant design while also maintaining a high level of safety by preventing injury to people who come into contact with it.

Excellent filter maintainability

The bottom-maintenance system enables HEPA filter replacement to be conducted from inside the booth.

Uses a low-noise-level, low-power-consumption fan filter unit

Utilizes a lightweight, thin-type HEPA fan filter unit. The built-in proprietary, high-efficiency turbofan consumes little electricity and produces minimal noise.

Recessed lighting equipment

Uses recessed fluorescent light units designed for clean rooms. Use of a specially designed gasket on the light cover insulates the clean air inside the booth from the unfiltered air behind the ceiling surface.

Vinyl Curtain Booth

Adoption of 0.5 mm antistatic vinyl curtain material provides strength and durability against breakage while creating a pleasing external appearance. For welding and other such uses, a stainless steel frame or carbon steel plate frame can be prepared.

Please contact us for inquiries by E-mail. info@kamata.co.jp
KAMATA　Industry Co.,Ltd.　　SALES PROMOTION DEPT

KAMATA CLEAN ROOM

Use of prefabricated heat-insulating panels enables quick installation of clean rooms (from ISO class 5 to class 8) for electronic part production lines, medical supply production lines, food processing lines and other fields that require high levels of safety and sanitation.

Design Freedom through Use of Heat-Insulating Panels

Using heat-insulating panels, we secure hinges in existing building structures and install reinforcing materials in the ceiling to create a pillar-free space. Ceiling heights of up to 7800 mm are possible with one panel.

High Cleanliness

We provide everything from high-performance clean rooms whose entire ceiling sections act as filters to special rooms that prevent outside dust from entering, utilizing climate control technology to provide an optimized method for keeping rooms clean. If necessary, floor coating, grating and other measures can be applied.

Product Installation in Countries Outside of Japan

We perform installation of clean booths in Southeast Asian countries, arranging installations through collaboration with local companies.

Please contact us for inquiries by E-mail. info@kamata.co.jp
KAMATA　Industry Co.,Ltd.　　SALES PROMOTION DEPT
